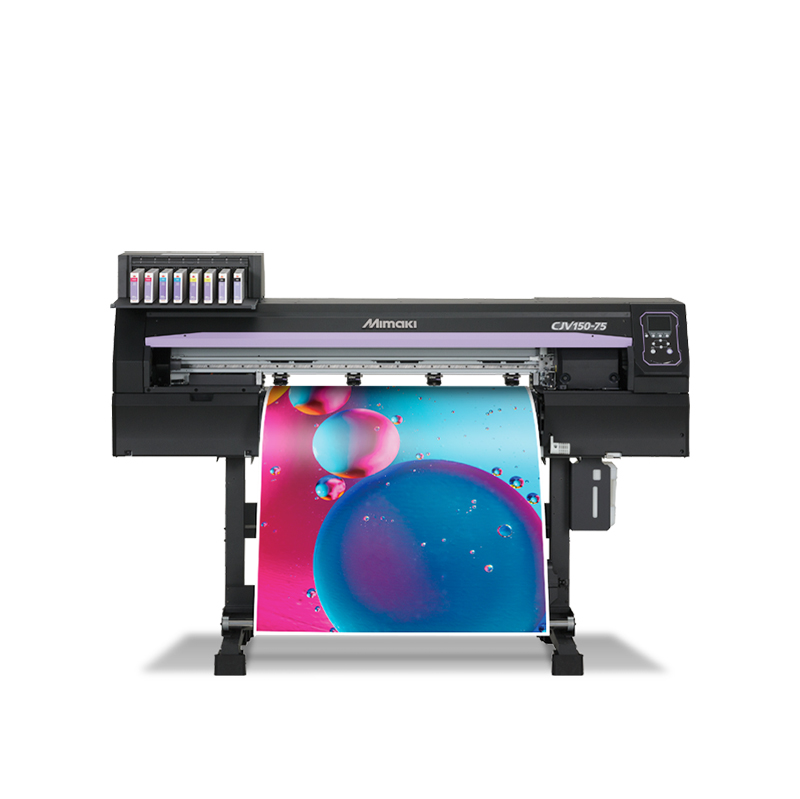

Mimaki CJV150-75 UV Printer with Cutter 220V New Machine

QR code

copy Link

Facebook

$9780.00

Kind Printing Machine

Type UV Printer

Brand Mimaki

Model CJV150-75

Condition New

Origin Japan

Sales Unit Piece

Consult immediately

Document Download

Reservation Now

DetailReview(0)

TECHNICAL SPECIFICATION CJV150-75 107 130 160 Series

MAIN UNIT

PRINTER SPECIFICATION

		CJV150-75	CJV150-107	CJV150-130	CJV150-160
Printhead		On-demand piezo head
Print resolution		360 dpi, 540 dpi, 720 dpi, 1,080 dpi, and 1,440 dpi
Maximum print width		800mm (31.5")	1,090mm (42.9")	1,361mm (53.6")	1,610mm (63.4")
Maximum media		810mm (31.9")	1,100mm (43.3")	1,371mm (54.0")	1,620mm (63.8")
Ink	Type/Color	Eco-solvent ink ・SS21（C,M,Y,K,Lc,Lm,Lk,Or,W and Si）・BS3（C,M,Y, and K） Only available in specific countries ・BS4（C,M,Y, and K） Only available in specific countries ・ES3（C,M,Y,K,Lc,Lm, and W） Sublimation ink ・Sb53（Bl,M,Y,K/Dk,Lbl, and Lm）・Sb54（Bl,M,Y,K,Lbl, and Lm）
	Package size *1	SS21: 440ml Ink cartridge / 2L Ink pack (* W and Si are provided in 220ml ink cartridges only) BS3, BS4: 600ml Ink pack / 2L Ink pack ES3: 440ml Ink cartridge (* W is provided in 220ml ink cartridge only) Sb53, Sb54: 440ml Ink cartridge / 2L Ink pack
	Circulation system	MCT （Mimaki Circulation Technology） Only applies to white and silver inks
Media thickness		1.0 mm or less
Rolled media weight		40 kg (88 lb) or less
Certifications		VCCI class A, FCC class A, ETL UL 60950-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM (CCC is in the process of being acquired.)
Interface		USB 2.0, LAN for E-mail notification function
Power supply		Single-phase (AC 100–120V / AC 220–240V)
Power consumption		100V:1.44 kVA × 1 or less / 200V: 1.92 kVA × 1 or less
Operational environment		Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H)		1,965mm × 700mm × 1,392mm (77"×28"×55")	2,255mm × 700mm × 1,392mm (89"×28"×55")	2,525mm × 700mm × 1,392mm (99"×28"×55")	2,775mm × 700mm × 1,392mm (109"×28"×55")
Weight		126kg (278 lb)	142kg (313 lb)	157kg (346 lb)	168kg (370 lb)

*1 Optional Mimaki bulk ink system 3 (MBIS3) is required for using 2L Ink pack.

Ink set

SS21 ［C,M,Y,K,Lc,Lm,Lk,Or,W,Si］	C　M　Y　K
	C　M　Y　K　Lc　Lm　Lk　Or
	C　M　Y　K　Lc　Lm　W
	C　M　Y　K　Lc　Lm　W　Si
	C　M　Y　K　Lk　Or　W
	C　M　Y　K　Lk　Or　W　Si
BS3 ［C,M,Y,K］	C　M　Y　K
BS4 ［C,M,Y,K］	C　M　Y　K
ES3 ［C,M,Y,K,Lc,Lm,W］	C　M　Y　K
	C　M　Y　K　Lc　Lm
	C　M　Y　K　Lc　Lm　W
Sb53 ［Bl,M,Y,K/Dk,Lbl,Lm］	Bl　M　Y　K/Dk
Sb53 ［Bl,M,Y,K/Dk,Lbl,Lm］	Bl　M　Y　K/Dk　Lbl　Lm
Sb54 ［Bl,M,Y,K,Lbl,Lm］	Bl　M　Y　K
Sb54 ［Bl,M,Y,K,Lbl,Lm］	Bl　M　Y　K　Lbl　Lm

Some of the screens and printing samples in this website are artificial renderings.
Specifications are subject to change without notice.
All trademarks or registered trademarks are the property of their respective owners.
Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.

Download PDF Brochure

Mimaki CJV150 Series CJV150-75 CJV150-107 CJV150-130 CJV150-160 UV Printer Brochure-English .pdf
