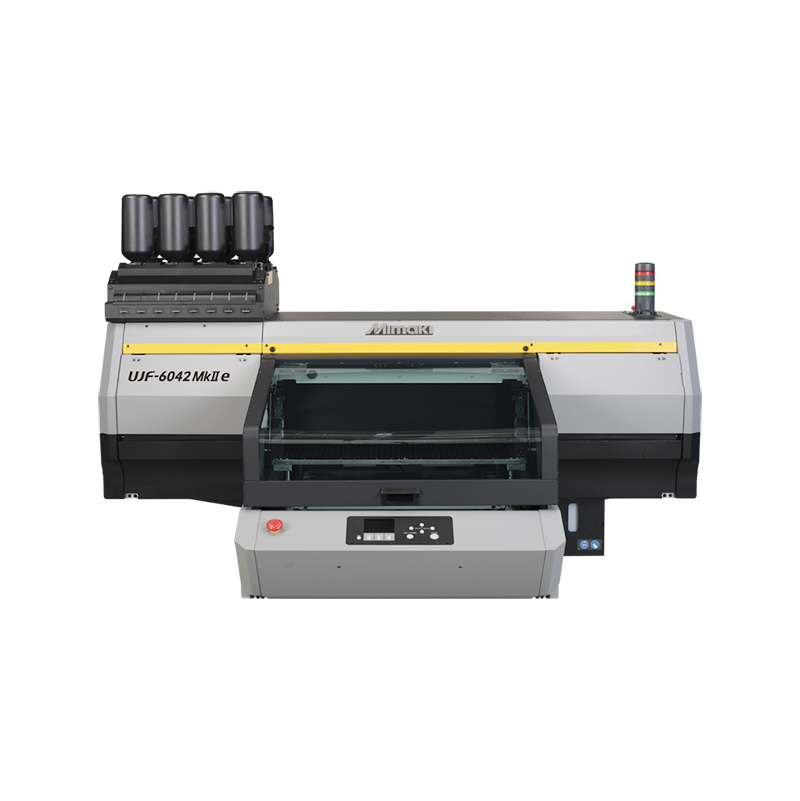

TECHNICAL SPECIFICATION UJF-6042 MkII E Series
MAIN UNIT
PRINTER SPECIFICATION
| UJF-6042MkII e | ||
|---|---|---|
| Printhead | On-demand piezo printhead (4 printheads arranged in a staggered line) | |
| Print resolution | Maximum: 1200 x 1200 dpi | |
| Maximum printable area | Width：610mm Length：420mm (A2 size) | |
| Ink | Type/Color | LH-100 (C, M, Y, K, Lc, Lm, W, Cl) LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) LUS-150 (C, M, Y, K, W) PR-200 (Primer) |
| Packaging | LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle LUS-150: 1 L bottle | |
| Media | Thickness | 153 mm (6 in) or less |
| Weight | 8 kg (17.7 lb) or less | |
| Certifications | VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM | |
| Interface | Ethernet / USB2.0 | |
| Noise level | Standby mode: 55dB or less (FAST-A, measured1 m away from the source) Continuous operation: 65 dB or less Discontinuous operation: 70 dB or less | |
| Power supply | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz | |
| Power consumption | 1,000W or less | |
| Operational environment | Temperature | 20 - 30 degC (68 - 86 degF) |
| Humidity | 35 - 65％Rh (Non condensing) | |
| Recomended Temperature | 20 - 25 degC (68 - 77 degF) | |
| Temperature change | ±10 degC (±50 degF) /h or less | |
| Dust level | Equivalent to a general office floor level | |
| RIP software | RasterLink7 (Bundled) | |
| Dimensions (W × D × H) *1 | 1,665 mm × 1,290 mm × 856 mm (65.6 in × 50.8 in × 33.7 in) | |
| Weight | 150 kg (330.7 lb) | |
*1: Heights of ink bottles are not included.
- Inks would not be cured when printing speed is faster than that of draft mode.
Some of the screens and printing samples in this website are artificial renderings.
Specifications are subject to change without notice.
All trademarks or registered trademarks are the property of their respective owners.
Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
