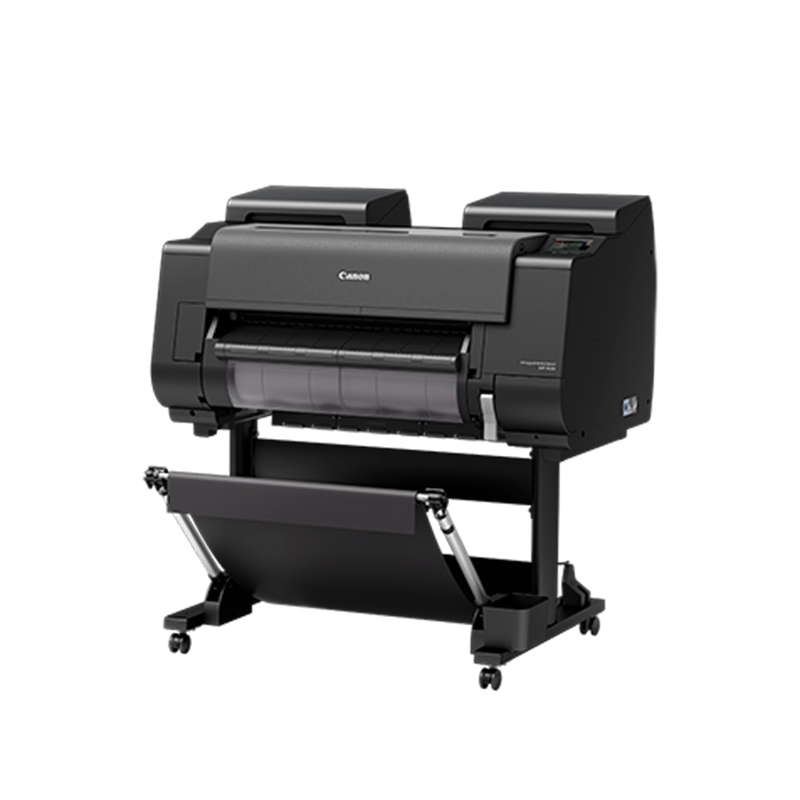

佳能 imagePROGRAF GP-520 大幅面打印机

打印机类型    10色+荧光粉色, 24英寸 (610 mm)

喷嘴数量    18,432 个喷嘴 (1,536 个喷嘴 x 11 色)

最大打印分辨率   2400 × 1200 dpi

喷嘴间距    600 dpi x 2Line Accuracy*1   ± 0.1% or less

最小墨滴尺寸   4 pl

墨盒容量

销售墨盒: 160 ml / 330 ml / 700 ml (MBK, PBK, C, M, Y, GY, R, O, G, V, FP)

启动墨盒（初始墨盒）: 330 ml (MBK), 160 ml (PBK, C, M, Y, GY, R, O, G, V, FP)

墨水类型   颜料墨水

打印机语言

SG Raster (Swift Graphic Raster)

PDF (Ver. 1.7)

JPEG (Ver. JFIF1.02)

打印方式

Apple AirPrint, Direct Print Plus, Easy-PhotoPrint Editor, Canon PRINT Inkjet/SELPHY,

Canon Print Service, Free Layout plus, PosterArtist Lite, Professional Print & Layout,

imageRUNNER ADVANCE Direct Enlargement Copy

管理方式

Media Configuration Tool, Accounting Manager, Device Management Console,

Quick Utility Toolbox

标准接口（内置）

USB A 端口:

USB 存储器（直接打印 JPEG/PDF 文件）

USB B 端口(Series B, 4 pins):

高速 USB

全速（12 兆/秒）

高速（480 兆/秒）

批量传输

千兆以太网：

IEEE 802.3 10base-T

IEEE 802.3u 100base-TX/Auto-Negotiation

IEEE 802.3ab 1000base-T/Auto-Negotiation

IEEE 802.3x Full Duplex

SNMP, HTTP, TCP/IP (IPv4/IPv6)

无线局域网:

IEEE802.11b/g/n

WEP (64/128bit)

WPA-PSK (TKIP/AES)

WPA2-PSK (TKIP/AES)

标准内存

3 GB

硬盘容量

500 GB (Encrypted)

打印速度*2

Plain Paper

Poster/Photos, Fluorescent, A1

59 sec [Fast (Custom Q5)]

1 min 37 sec [Standard]

Heavyweight Coated Paper HG

Poster/Photos, Fluorescent, A1

1 min 37 sec [Standard]

3 min 09 sec [High]

Glossy Photo Paper HG 170

Poster/Photos, Fluorescent, A1

3 min 08 sec [Standard]

4 min 40 sec [High]

介质处理

Media Feed and Output

Roll Paper / Cut Sheet    Front Load, Front Output*3

Media Width (Roll / Cut Sheet)   152.4 ～ 610 mm

Media Thickness (Roll / Cut Sheet)   0.07 ～ 0.8 mm

Min. Printable Length

Roll Paper    101.6 mm*4

Cut Sheet     203.2 mm

Max. Printable Length

Roll Paper   18 m*5

Cut Sheet   2133.6 mm

Maximum Outer Roll Diameter   170 mm or less

Borderless Printing Width   152.4 ～ 610 mm

(Roll paper only)

Margins (Recommended Area)

Roll Paper     Top: 20 mm, Bottom/Side: 3 mm

Cut Sheet (Apple AirPrint)   Top: 20 mm, Bottom: 31 mm, Side: 3 mm

Cut Sheet (Others)    Top/Bottom: 20 mm, Side: 3 mm

Margins (Printable Area)

Roll Paper    Top/Bottom/Side: 3 mm

Roll Paper (Borderless Print)    Top/Bottom/Side: 0 mm

Cut Sheet (Apple AirPrint)   Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm

Cut Sheet (Others)     Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Dimensions & Weight*6

尺寸 (W x D x H)

Main Unit + Stand + Basket

1110 x 984 x 1168 mm (Basket Open)

1110 x 766 x 1168 mm (Basket Closed)

Main Unit + Stand + Basket + Roll Unit

1110 x 984 x 1168 mm (Basket Open)

1110 x 766 x 1168 mm (Basket Closed)

重量

Main Unit + Stand + Basket

102 kg

Main Unit + Stand + Basket + Roll Unit

119 kg

包装尺寸 (W x D x H)

Main Unit + Pallet

1324 x 902 x 1042 mm

Stand + Basket

1111 x 797 x 223 mm

Roll Unit

1244 x 562 x 461 mm

包装重量

Main Unit + Pallet

125 kg

Stand + Basket

23 kg

Roll Unit

26 kg

电源和使用环境

电源   AC 100 - 240 V, 50 - 60 Hz

能耗

打印中*7    84 W or less

休眠模式*7   2.0 W or less

关闭电源   0.3 W or less

使用环境

温度   15 ～ 30 °C

湿度   10 ～ 80 % RH (no dew condensation)

Acoustic Sound

Acoustic Power*8   Operation: Approx. 65 dB

Acoustic Pressure*8   Operation: Approx. 48 dB (A)

                                  Standby: 35 dB (A) or less

选配件

Printer Stand + Basket (Required)

SD-21

Roll Unit (Optional)

RU-23

2"/3" Roll Holder (Optional)

RH2-29

耗材：

墨盒

PFI-810 (160 ml) / PFI-830 (330 ml) / PFI-870 (700 ml)

Matte Black / Photo Black / Cyan / Magenta / Yellow / Grey / Red / Orange

/ Green / Violet / Fluorescent Pink

打印头

PF-10

裁刀

CT-07

维护盒（废墨盒

MC-30
